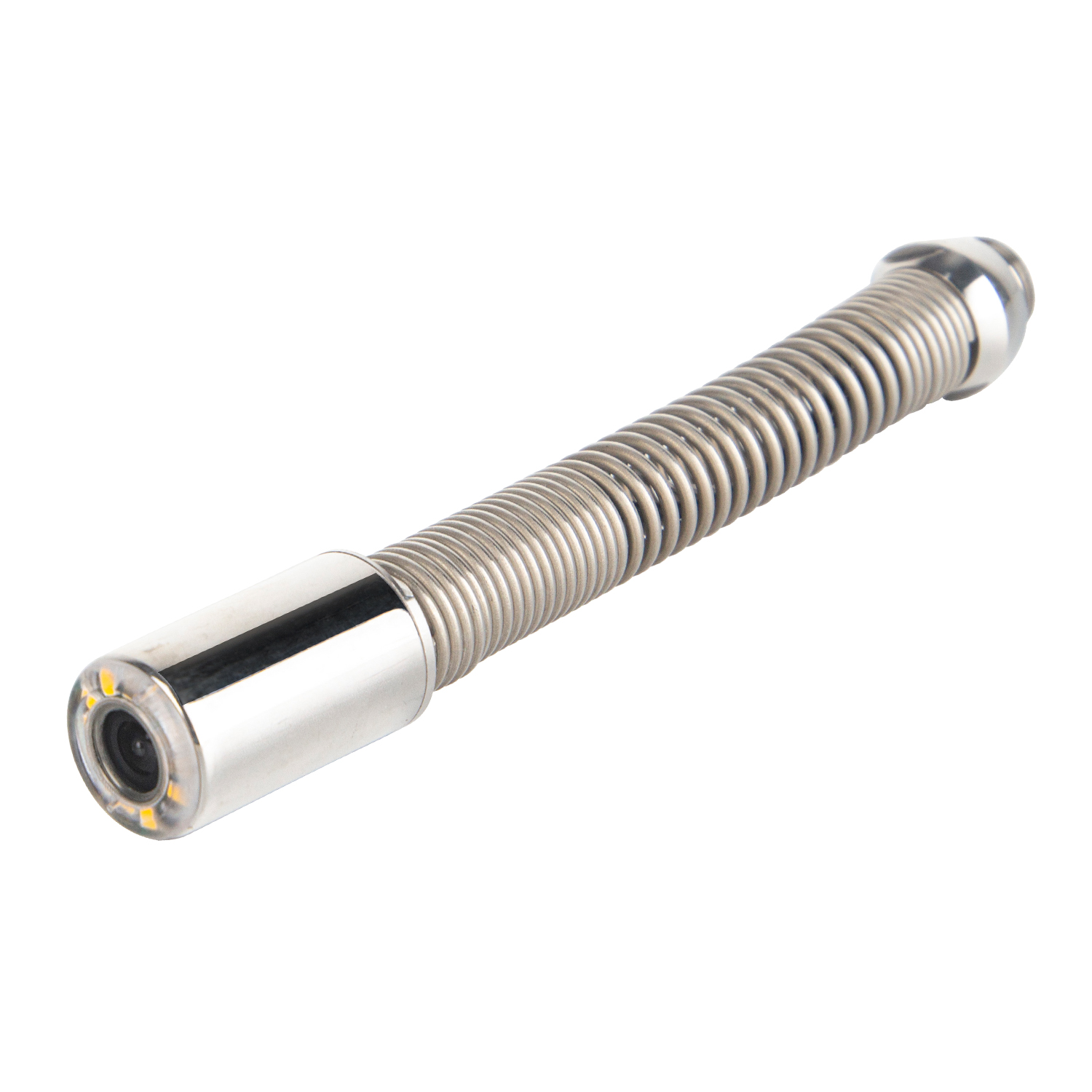

HMDA-NE100 Industrial Borescope

Key Technical Specifications

The HMDA-NE100 Industrial Borescope is engineered for demanding inspection environments where precision and durability are non-negotiable. Built around a 1/6-inch CMOS sensor delivering 1280×720 resolution, this non-display endoscope provides crystal-clear imagery in the most confined industrial spaces.

Optical Performance

Equipped with 6 adjustable LED lights and a 70° wide-angle lens, the NE100 captures every detail in low-light conditions. The 5.5mm probe diameter allows access through spark plug holes, fuel injector ports, and other tight openings without disassembly.

Probe Specifications

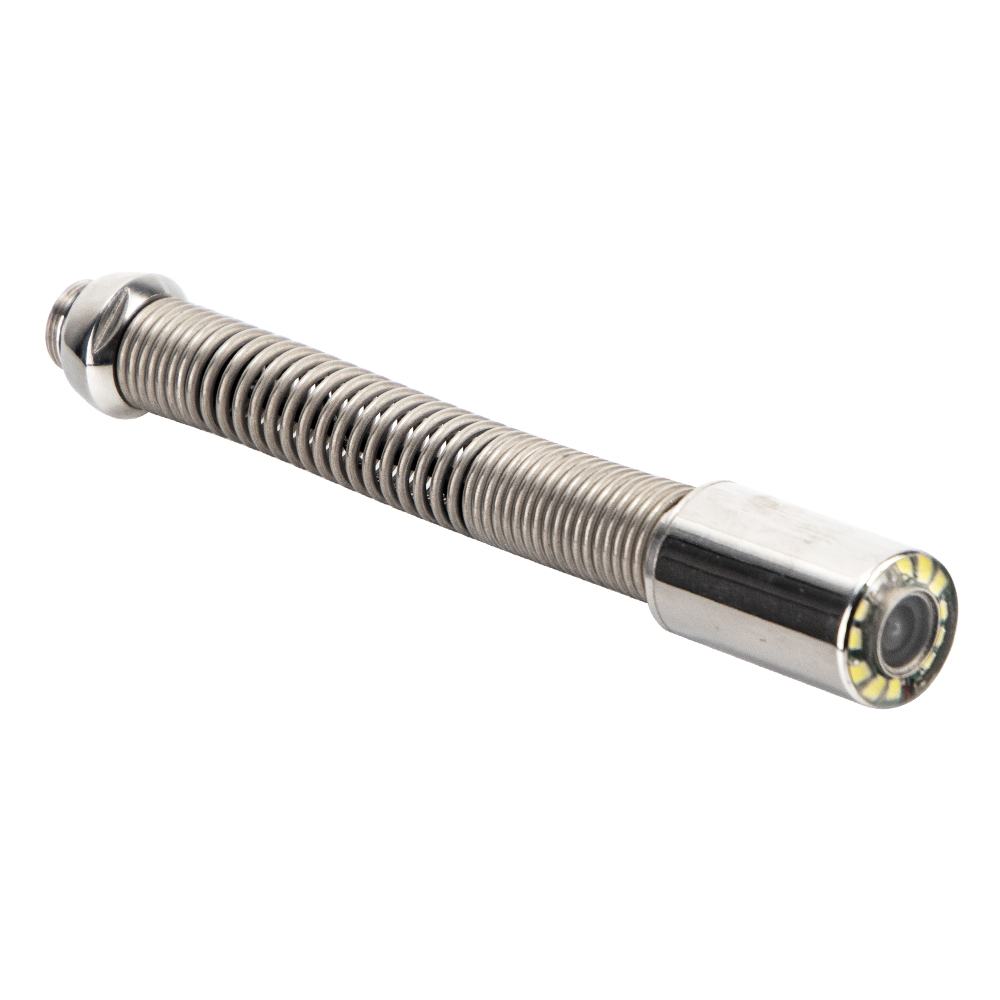

The semi-rigid 1-meter probe features a 120° articulation capability, giving operators full control over the viewing direction. IP67 waterproof rating ensures reliable operation even in wet environments, including submerged pipe inspections up to 1 meter depth.

Connectivity and Compatibility

The NE100 connects via USB 2.0 to Windows, macOS, Android, and Linux systems — no additional drivers required for most platforms. Compatible with popular inspection software and supports real-time video capture at 30fps.

Typical Applications

Automotive engine diagnostics, HVAC duct inspection, plumbing pipe assessment, aerospace turbine blade examination, and manufacturing quality control. The compact form factor makes it ideal for field service technicians who need professional-grade inspection capability without carrying bulky equipment.

Package Contents

Each unit ships with the NE100 borescope probe, USB cable, carrying case, hook magnet accessory, side mirror attachment, and quick-start guide. A 12-month manufacturer warranty covers all defects.
